The following images (Figs.15-21) illustrate how the PV tiles can be installed with due
consideration of air-tightness within the ventilation cavity under the tiles for optimal
extraction of PV heated air.

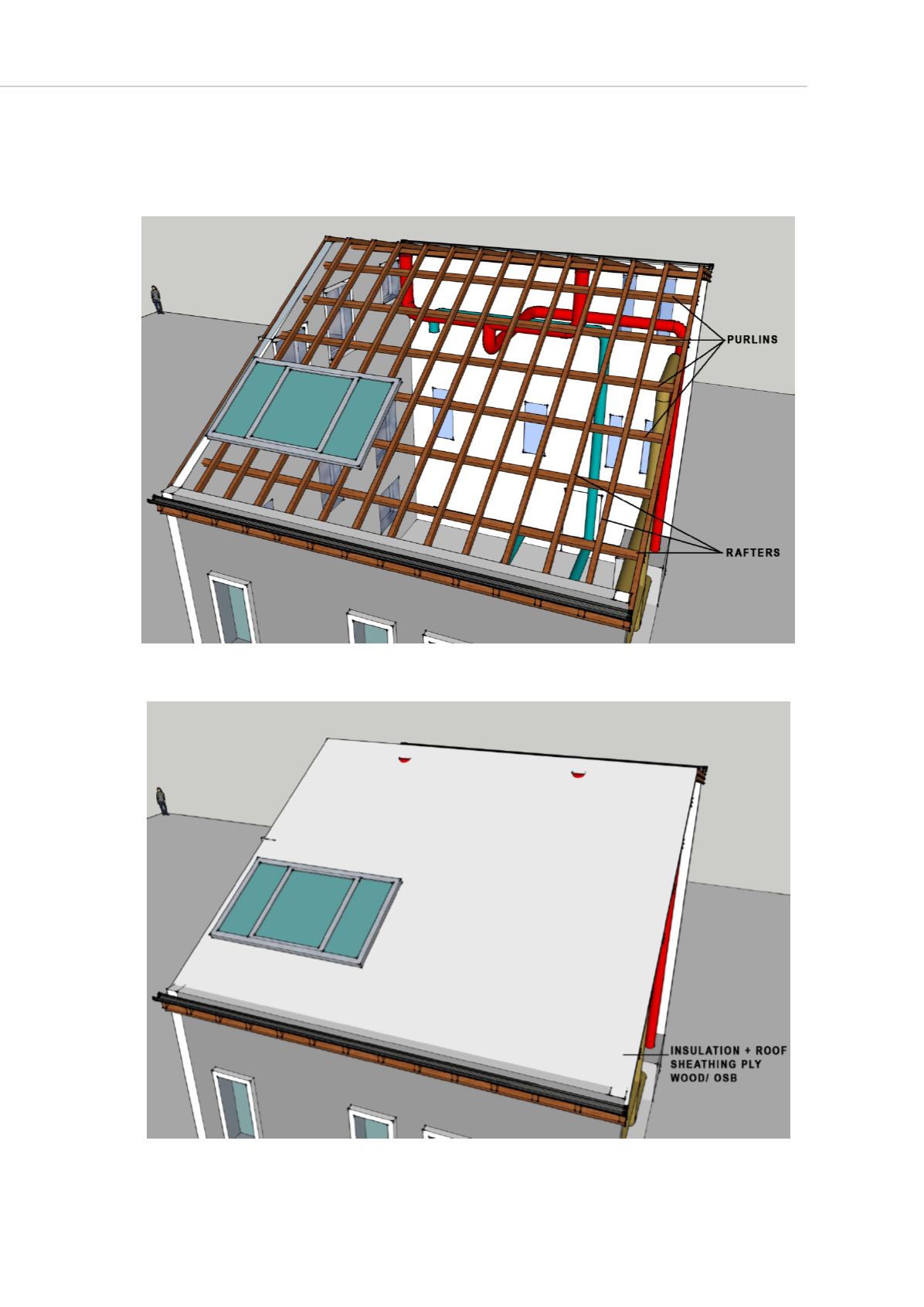

Figure 15: Structural members of the roof before roof sheathing
Figure 16: Roof sheathing with insulation
